HANDICARE 1000

With one of the slimmest straight stairlift tracks on the market, the Handicare 1000 offers minimal track intrusion into the staircase and is a very popular choice

HANDICARE 1000

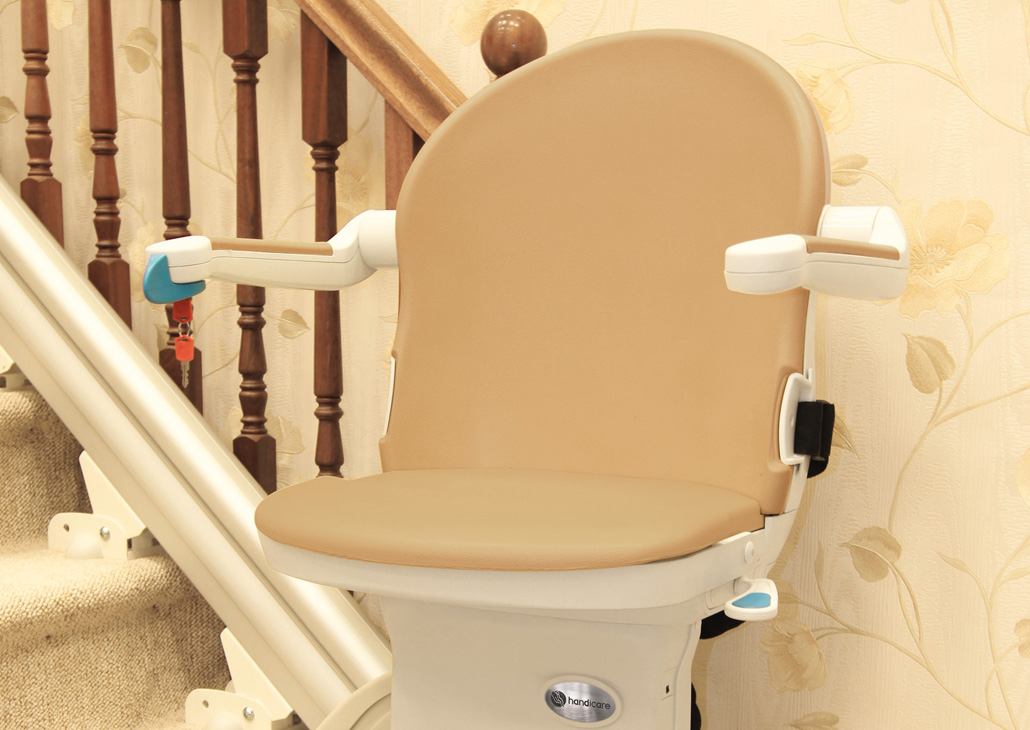

The 1000 provides comfort and support and gives the option of upgrading with powered features. In addition to this the anodized aluminium rail offers a stylish solution with a hidden gear rack.

Z

NARROWEST STRAIGHT STAIRLIFT TRACK ON THE MARKET

Z

POWERED SWIVEL SEAT

Z

SMART SEAT

Z

HEAVY DUTY VERSION AVAILABLE FOR USERS UP TO 200KG

Z

6 SEAT COLOUR OPTIONS

Z

safety CLIP SEAT-BELT

Buying a stairlift from Beechfield Stairlifts has never been easier! We have partnered with Flexi-Fi, so you can now spread the cost of your stairlift.

SPECIFICATIONS
Specifications
  • Minimum swivel radius 670mm
    • with arm spacers 693mm
    • with extended arm spacers 710mm
  • Minimum wall to seat back 75mm
  • Seat depth 360mm
    • with extended seat 425mm
  • Minimum folded width to footplate 385mm
  • Minimum open width to edge of footplate 650mm
  • Armrest width – external 550mm
    • with arm spacers 590mm
    • with extended arm spacers 637mm
  • Armrest width – internal 460mm
    • with arm spacers 516mm
    • with extended arm spacers 562mm
  • Seat back height 453mm
  • Footplate to seat height
    • standard seat option 465-540mm
    • perch seat option 677-877mm
  • Minimum footplate height 85mm
  • Bottom parking space required 550mm (56°) min to 675mm at shallow angle (27°)
  • Minimum track intrusion into staircase 115mm
  • Minimum track overhang at top of stairs 86mm
  • Minimum track intrusion at bottom of stairs 400mm
  • Minimum track length with hinge 2300mm
  • Maximum weight limit
    • standard version 137kg/21.5 stone
    • heavy duty version (XL) 160kg/25 stone
    • extra heavy duty version (XXL) 200kg/31.5 stone
  • Speed 0.12m/sec (approx)
  • Maximum staircase angle 56° (52° with hinge)
Safety
  • Safety sensors designed to stop the lift if it meets any obstructions
  • Emergency stop
  • Retractable seat belt
  • Key operated switch
  • Battery backup
